Our lightest bike ever
Lightness must be controlled. Making a lightweight frame is relatively simple, but making a lightweight one with top-notch performance and riding qualities requires a strong legacy.
The Verticale SLR is the best example of what we have been, and of what we do best: a racing bike that has improved weight over the Wilier 0 SLR – the previous climbing model made by Wilier – by almost 10% (9.73% on the kit comprising frame, fork, handlebars, and seatpost).
1623 g for the Verticale SLR, 1798 g for the 0 SLR.
Lighter weight, greater responsiveness, improved performance levels.
The Verticale SLR is today the best calling card for Wilier, the new generation of the best Italian bicycle manufacturers.
Outstanding carbon
When we address the frame of a climbing bike, the first aspect we need to consider is the raw material used. Using the highest quality composite materials is the starting point to give rise to a project that focuses fully on top-level performance.
For the Verticale SLR, we specifically used 3 types of fibres produced by Toray, a Japanese multinational and leader in the carbon fibre market, especially T800, T1100, and M46JB.

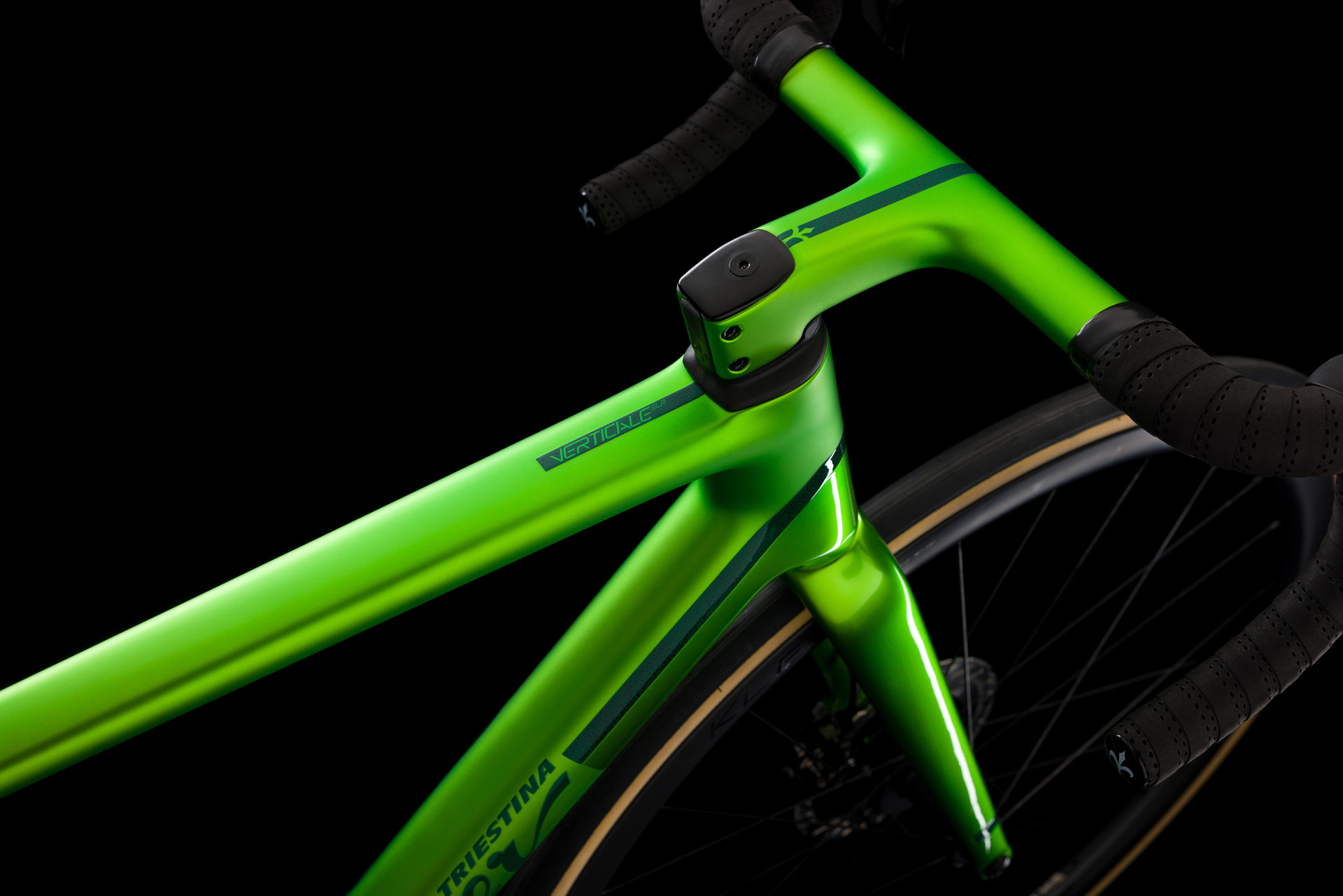

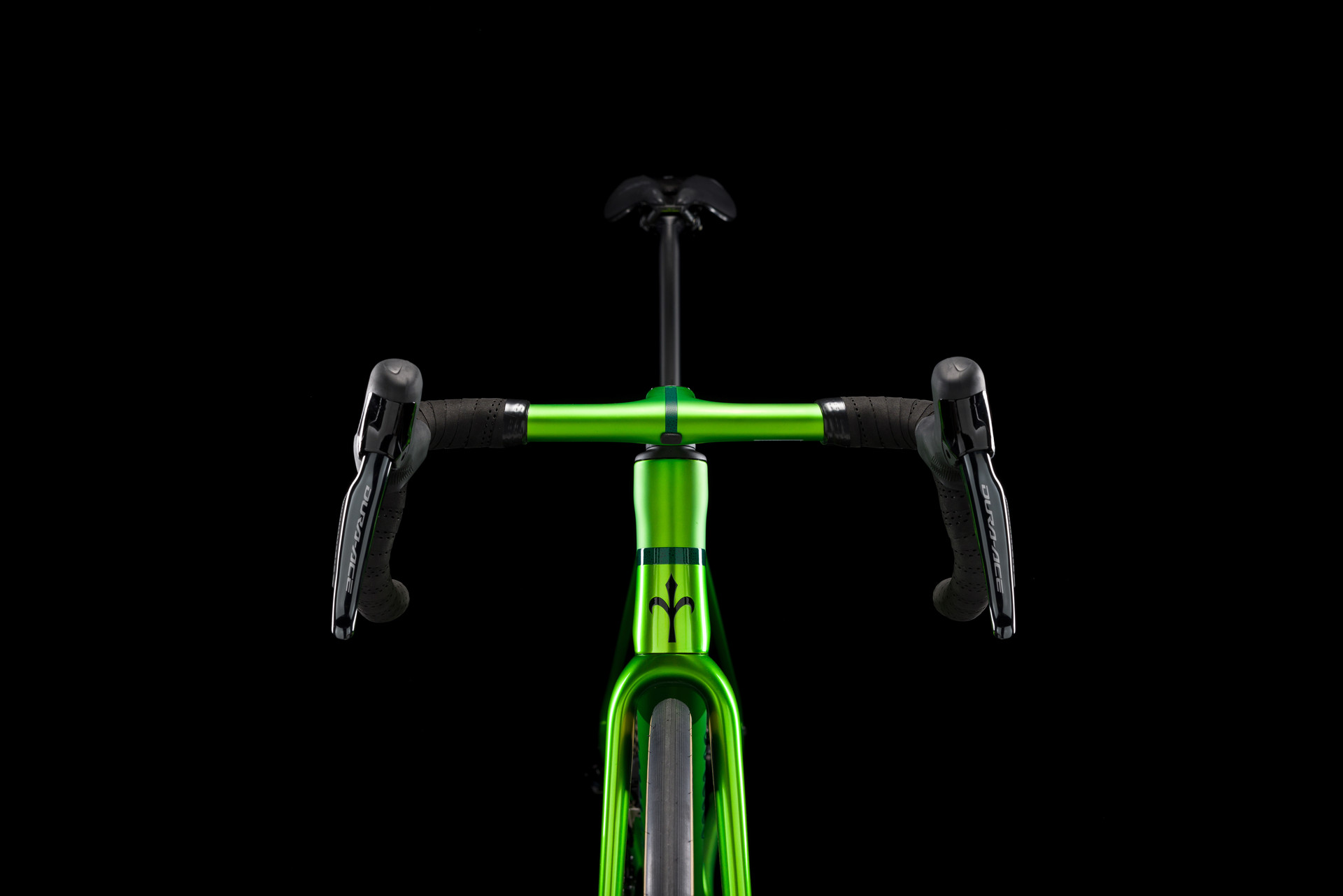

New integrated V-Bar
The handlebar is in carbon monocoque and features a brand-new design weighing approximately 310 grammes.
The first thing that strikes you is the special shape with differentiated handlebar width. If you look at it from the front, the high grip on the controls is narrower at the bottom. This particular shape was devised to provide concrete solutions to the needs of professionals, who season after season scout for optimum aerodynamic solutions which comply with the rules and standards set by the UCI.
There is a trend to narrow it while nevertheless having a wider low grip to guarantee better handling, which is a key requirement when sprinting. The delta between the top and the bottom is 30 mm.
V-Bar, like the other monocoque handlebars in the Wilier range, is also compatible with our other premium bikes. It is available in 6 sizes, 2 with a width of 37/40mm, with 90 and 100mm stems, 4 with a width of 39/42mm, with 110, 120, 130 and 150mm stems.
Brake sheath routing
The contact surface has been increased to improve the passage of the sheath inside the handlebar.
Integrated cyclocomputer mount
The pursuit of a reduced overall handlebar weight has led us to develop a purpose-designed cyclocomputer mount stick, made entirely of aluminium which, unlike its predecessors, fits entirely in the handlebar.
It is secured thanks to two through holes which have enabled us to optimise weight further compared to previous models.
At the rear, in the fork-sleeve handlebar stem area, you can see that the tightening system is different . The screws tighten on two aluminium inserts, a solution that makes replacement easier in the tightening part, while also improving the distribution of force on the composite part.
The rear of the stem is finished with a rubber insert to prevent dirt and sweat from penetrating the handlebar, thereby preserving its reliability in the long run.

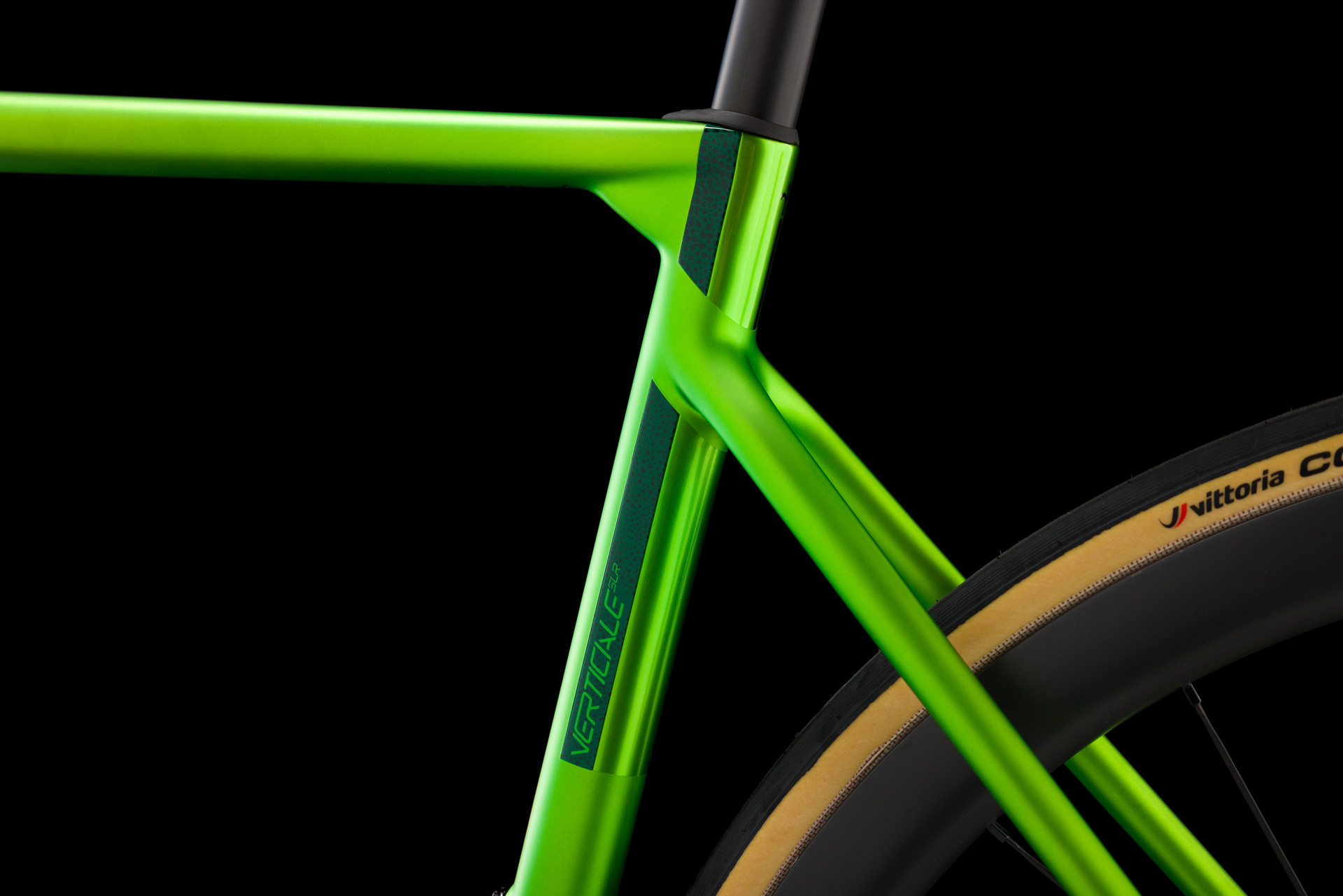

Seatpost with light or integrated number
New seatpost clamp system
This tightening system has allowed us to lighten the weight at that point of the frame with respect to the 0 SLR.
New derailleur coupling
Another major and fundamental new feature is the front derailleur coupling, which for the Verticale SLR is no longer riveted to the frame and has become repositionable.
This is how we succeeded in cutting down the weight of the coupling and having two possible configurations allowing the mounting in one case of a 50-34 or 53-39 compact crankset and in the other an oversized crankset with up to 55-56 teeth as required by our World Tour teams.
Lenny Martinez, professional athlete from the Groupama – FDJ Team
It is lighter than the Filante SLR and responds really well when the road starts to climb. As soon as you stand on the pedals it responds really well, as we saw at the Mercan’ Tour Classic, which I won with this bike still in its prototype version.
I think it played a big part in that day’s victory. I rode it a little before the race, at home, and I immediately liked it.
It has all the qualities of a good bike, you really feel it when you’re dancing on the pedals or accelerating, and you feel like you’re being propelled forward.”
David Gaudu, professional athlete from the Groupama – FDJ Team
Harold Tejada, professional athlete from the Astana Qazaqstan Team
Great new handlebar that allows you to control the bike on descents while maintaining very good stability, grip and aerodynamics.
Going into every corner, you feel the stiffness and lightness which allow you to have full control of the bike.
I really like the new Verticale, it’s a great machine, nothing extra, everything is in its place. I am very happy with this bike.”
Shaped dropout
As far as the rear triangle is concerned, we have a new rear dropout designed with a special outlined shape which prevents it from rotating thereby guaranteeing greater reliability.
The interchangeable part is cantilever, which allows considerable space between the chain and the stays and avoids possible points of contact between the chain itself and the stay.
Everything is compatible with wireless and semi-wireless groups.
Asymmetrycal fork
The challenge was to improve the weight and performance of an apparently simple component. We retained the characteristic asymmetrical shape.
The sections on the rod housing the brake calipers have been oversized, whereas the right seat stay sections are lighter and thinner.
A new feature is the left fork stay which is twisted. This shape is an improvement for two reasons: improved orientation of the carbon fibres during rolling (to respond better to stresses) and the improved resistance to forces exerted by the calipers during braking.
New racing geometries
The first great difference compared to the Wilier 0 SLR was the change in reach. We focused on what the cyclist is most interested in. In other words their hand position in relation to the bottom bracket box.
The result is a change in the frame geometries and in the handlebar geometries. The bike stack has remained unchanged. Its reach on the other hand has been slightly shortened for sizes XS and S, while for sizes XL and XXL it has been extended compared to our classic geometries.
As for the handlebar, we focused on positions C0 and C1, the most performing for the athlete. This allowed us to deliver a product which, in terms of fitting, is suitable for all needs and any type of rider.
Videos
Geometries
XS | S | M | L | XL | XXL | |
---|---|---|---|---|---|---|
C/C (cm) | 43.2 | 46.2 | 48.2 | 50.2 | 52.2 | 54.2 |
L (cm) | 50.9 | 52.7 | 54.3 | 55.9 | 57.6 | 58.9 |
H (cm) | 45 | 48 | 50 | 52 | 54 | 56 |
A (°) | 72.5 | 74.5 | 74 | 73.5 | 73 | 73 |
L1 (cm) | 40.5 | 40.7 | 40.8 | 41 | 41.2 | 41.2 |
H1 (cm) | 10.2 | 12.1 | 13.8 | 15.5 | 17.2 | 18.9 |
A1 (°) | 70.6 | 71.5 | 72 | 72.5 | 73 | 73.5 |
Reach (mm) | 373 | 380 | 386.5 | 393 | 400 | 408 |
Stack (mm) | 505 | 523 | 541 | 559 | 577 | 595 |
Wheelbase (mm) | 974 | 981 | 990 | 999 | 1009 | 1017 |
Improve your riding position with accu-fit
Correct positioning in the saddle is one of the most essential issues for cyclists, especially for competitors and long-distance cyclists. While with steel bikes, it was relatively easy to measure the length of the tubes, as the years passed, and with the introduction of sloping top tubes, defining measurements has become increasingly complex. So, in addition to the classic values of height, length and angles, we now consider reach & stack data and horizontal and vertical distance values between the centre of the bottom bracket and the centre of the upper part of the head tube.
But modern bicycles have made measurement even more complex, since they are complete and complex systems based on the combination of the frame, handlebar spacers and monocoque handlebars. When buying a bike, it is essential to know the size of every bike element based on your body size and shape. As manufacturers of frames and monocoque handlebars, we have added a new value to the measurement of the frame which combines the length of the head tube and the dimensions of the monocoque handlebar.
This coordinate, called ACCU-FIT, determines the distance between the bottom bracket’s center and the handlebar’s center. It is clear that for every model there are as many coordinates as frame sizes multiplied by the number of handlebar sizes and the configuration of spacers.
For the Verticale SLR the biggest news is that we have succeeded in achieving an even filling range in space, even for the new position in C1. This research and development process was conducted in close partnership with the Groupama – FDJ Équipe Cycliste team.
Setup & Prices
Code | Drivetrain Model | Wheelset | Price | |
---|---|---|---|---|
E508WRK | CAMPAGNOLO SUPER RECORD WIRELESS 12S | MICHE KLEOS RD 36 CARBON | CERAMICSPEED BEARINGS | – | |
Frame: VERTICALE SLR – TORAY T800+T1100 M46 JB CARBON MONOCOQUE UDH
Fork: VERTICALE SLR – TORAY T800+T1100 M46 JB CARBON MONOCOQUE
H-Bar: TORAY T800+T1100 M46 JB CARBON MONOCOQUE V BAR + GARMIN/WAHOO MOUNT
Shifters: CAMPAGNOLO SUPER RECORD WIRELESS 12 SPEED
Brakes: CAMPAGNOLO SUPER RECORD WIRELESS 12 SPEED ERGOPOWER CONTROLS
Rotors: CAMPAGNOLO ROTOR 03 160 / 160
Front derailleur: CAMPAGNOLO SUPER RECORD WIRELESS 12 SPEED
Rear derailleur: CAMPAGNOLO SUPER RECORD WIRELESS 12 SPEED
Crankset: SUPER RECORD WIRELESS 12 SPEED SERIES 34-50T
Cassette: SUPER RECORD WIRELESS 12 SPEED SERIES 10-29T
Chain: SUPER RECORD WIRELESS 12 SPEED SERIES
Tyres: VITTORIA CORSA PRO 700X28C
Saddle: PROLOGO NAGO R4 PAS CARBON RAILS
Seatpost: WILIER VERTICALE CARBON CUSTOM MADE -15 mm / 0 mm + REAR LIGHT
Axle: MICHE RD THRU AXLE LIGHT 12X118F 12X165R
Weight: 6,57 Kg +/- 5%
Frame weight: 720 g +/- 5%
Fork weight: 320 g +/- 5%
|
||||
E508TBK | SRAM RED AXS E1 12S WITH POWERMETER | MICHE KLEOS RD 36 CARBON | CERAMICSPEED BEARINGS | £12,500.00 | |
Frame: VERTICALE SLR – TORAY T800+T1100 M46 JB CARBON MONOCOQUE UDH
Fork: VERTICALE SLR – TORAY T800+T1100 M46 JB CARBON MONOCOQUE
H-Bar: TORAY T800+T1100 M46 JB CARBON MONOCOQUE V BAR + GARMIN/WAHOO MOUNT
H-Bar weight: 310 g +/- 5%
Headset: WILIER SUPERSLIM CUSTOM BEARINGS
Shifters: SRAM RED AXS E1
Brakes: SRAM RED AXS E1
Rotors: SRAM PACELINE 160 / 160
Front derailleur: SRAM RED AXS E1
Rear derailleur: SRAM RED AXS E2
Crankset: SRAM RED AXS E1 DUB 12S WITH POWERMETER 48-35T
Bottom bracket: SRAM DUB 86.5 PRESS FIT ROAD
Cassette: SRAM RED CS-XG-1290-E1 10-36T
Chain: SRAM RED CN-RED-E1
Tyres: VITTORIA CORSA PRO 700X28C
Saddle: PROLOGO NAGO R4 PAS CARBON RAILS
Seatpost: VERTICALE SLR CARBON WILIER CUSTOM MADE -15 mm / 0 mm + REAR LIGHT
Axle: MICHE RD THRU AXLE LIGHT 12X118F 12X165R
Weight: 6,69 Kg +/- 5%
Frame weight: 720 g +/- 5%
Fork weight: 320 g +/- 5%
|
||||
E508IPK | SHIMANO DURA-ACE Di2 R9270 12S WITH POWERMETER | MICHE KLEOS RD 36 CARBON | CERAMICSPEED BEARINGS | £12,500.00 | |
Frame: VERTICALE SLR – TORAY T800+T1100 M46 JB CARBON MONOCOQUE UDH
Fork: VERTICALE SLR – TORAY T800+T1100 M46 JB CARBON MONOCOQUE
H-Bar: TORAY T800+T1100 M46 JB CARBON MONOCOQUE V BAR + GARMIN/WAHOO MOUNT
H-Bar weight: 310 g +/- 5%
Headset: WILIER SUPERSLIM CUSTOM BEARINGS
Shifters: SHIMANO DURA-ACE Di2 R9270
Brakes: SHIMANO DURA-ACE Di2 R9270
Rotors: SHIMANO DURA-ACE R9200 160 / 140
Front derailleur: SHIMANO DURA-ACE Di2 R9250
Rear derailleur: SHIMANO DURA-ACE Di2 R9270
Crankset: SHIMANO DURA-ACE FC-R9200 12S WITH POWERMETER 52-36T
Bottom bracket: MICHE INTEGRALE RD | CERAMICSPEED PRESSFIT 86.5X41
Cassette: SHIMANO DURA-ACE CS-R9200-12 12S 11-30T
Chain: SHIMANO DURA-ACE CN-M9100 12S
Tyres: VITTORIA CORSA PRO 700X28C
Saddle: PROLOGO NAGO R4 PAS CARBON RAILS
Seatpost: WILIER VERTICALE CARBON CUSTOM MADE -15 mm / 0 mm + REAR LIGHT
Axle: MICHE RD THRU AXLE LIGHT 12X118F 12X165R
Weight: 6,75 Kg +/- 5%
Frame weight: 720 g +/- 5%
Fork weight: 320 g +/- 5%
|
||||
E508IDK | SHIMANO DURA-ACE Di2 R9270 | MICHE KLEOS RD 36 CARBON | CERAMICSPEED BEARINGS | £11,000.00 | |
Frame: VERTICALE SLR – TORAY T800+T1100 M46 JB CARBON MONOCOQUE UDH
Fork: VERTICALE SLR – TORAY T800+T1100 M46 JB CARBON MONOCOQUE
H-Bar: TORAY T800+T1100 M46 JB CARBON MONOCOQUE V BAR + GARMIN/WAHOO MOUNT
H-Bar weight: 310 g +/- 5%
Headset: WILIER SUPERSLIM CUSTOM BEARINGS
Shifters: SHIMANO DURA-ACE Di2 R9270
Brakes: SHIMANO DURA-ACE Di2 R9270
Rotors: SHIMANO ULTEGRA RT-CL800 160 / 140
Front derailleur: SHIMANO DURA-ACE Di2 R9250
Rear derailleur: SHIMANO DURA-ACE Di2 R9270
Crankset: SHIMANO DURA-ACE FC-R9200 12S 52-36T
Bottom bracket: MICHE INTEGRALE RD | CERAMICSPEED PRESSFIT 86.5X41
Cassette: SHIMANO DURA-ACE CS-R9200-12 12S 11-30T
Chain: SHIMANO DURA-ACE CN-M9100 12S
Tyres: VITTORIA CORSA PRO 700X28C
Saddle: PROLOGO NAGO R4 PAS CARBON RAILS
Seatpost: VERTICALE SLR CARBON WILIER CUSTOM MADE -15 mm / 0 mm + REAR LIGHT
Axle: MICHE RD THRU AXLE LIGHT 12X118F 12X165R
Weight: 6,65 Kg +/- 5%
Frame weight: 720 g +/- 5%
Fork weight: 320 g +/- 5%
|
||||
E508FML | SRAM FORCE AXS D2 12S WITH POWERMETER | MICHE KLEOS 36 CARBON | £9,700.00 | |
Frame: VERTICALE SLR – TORAY T800+T1100 M46 JB CARBON MONOCOQUE UDH
Fork: VERTICALE SLR – TORAY T800+T1100 M46 JB CARBON MONOCOQUE
H-Bar: TORAY T800+T1100 M46 JB CARBON MONOCOQUE V BAR + GARMIN/WAHOO MOUNT
H-Bar weight: 310 g +/- 5%
Headset: WILIER SUPERSLIM CUSTOM BEARINGS
Shifters: SRAM FORCE AXS D2 12S
Brakes: SRAM FORCE AXS D2 12S
Rotors: SRAM PACELINE 160 / 160
Front derailleur: SRAM FORCE AXS D2 12S
Rear derailleur: SRAM FORCE AXS D2 12S
Crankset: SRAM FORCE AXS D2 12S WITH POWERMETER
Bottom bracket: SRAM DUB PRESSFIT 86.5 ROAD WIDE
Cassette: SRAM FORCE 12S 10-33T
Chain: SRAM FORCE 12S
Tyres: VITTORIA CORSA PRO 700X28C
Saddle: PROLOGO DIMENSION T4.1
Seatpost: VERTICALE SLR CARBON WILIER CUSTOM MADE -15 mm / 0 mm + REAR LIGHT
Axle: MICHE RD THRU AXLE LIGHT 12X118F 12X165R
Frame weight: 720 g +/- 5%
Fork weight: 320 g +/- 5%
|
||||
E508LDL | SHIMANO ULTEGRA Di2 R8170 12S | MICHE KLEOS 36 CARBON | £9,000.00 | |
Frame: VERTICALE SLR – TORAY T800+T1100 M46 JB CARBON MONOCOQUE UDH
Fork: VERTICALE SLR – TORAY T800+T1100 M46 JB CARBON MONOCOQUE
H-Bar: TORAY T800+T1100 M46 JB CARBON MONOCOQUE V BAR + GARMIN/WAHOO MOUNT
H-Bar weight: 310 g +/- 5%
Headset: WILIER SUPERSLIM CUSTOM BEARINGS
Shifters: SHIMANO ULTEGRA Di2 R8170
Brakes: SHIMANO ULTEGRA Di2 R8170
Rotors: SHIMANO ULTEGRA RT-MT800 160 / 140
Front derailleur: SHIMANO ULTEGRA Di2 R8170
Rear derailleur: SHIMANO ULTEGRA Di2 R8170
Crankset: GUARNITURA SHIMANO ULTEGRA FC-R100 50-34T
Bottom bracket: MICHE INTERGRALE PRESSFIT 86.5X41
Cassette: SHIMANO ULTEGRA CS-R8101-12 11-30T
Chain: SHIMANO ULTEGRA CN-M8100 12S
Tyres: VITTORIA CORSA PRO 700X28C
Saddle: PROLOGO DIMENSION T4.0
Seatpost: VERTICALE SLR CARBON WILIER CUSTOM MADE -15 mm / 0 mm + REAR LIGHT
Axle: MICHE RD THRU AXLE LIGHT 12X118F 12X165R
Frame weight: 720 g +/- 5%
Fork weight: 320 g +/- 5%
|
||||
E508F2L | SRAM FORCE D2 AXS 12S | MICHE KLEOS 36 CARBON | £9,200.00 | |
E508 | – | £5,500.00 |
THE PRICES, SPECIFICATIONS AND PHOTOS SHOWN IN THIS CATALOG ARE NOT SUBJECT TO ANY CONTRACTUAL OBLIGATION AND MAY CHANGE DURING THE SEASON.
