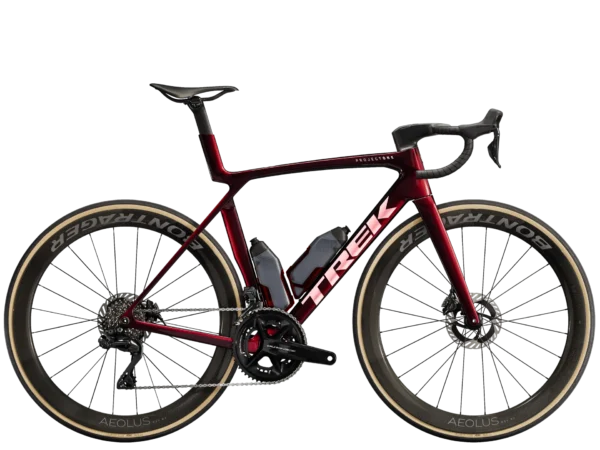

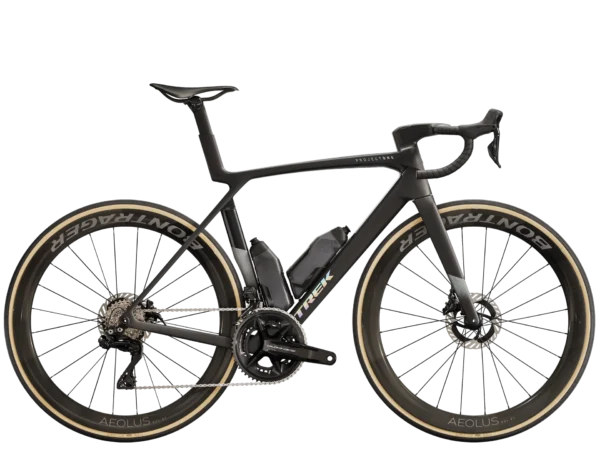

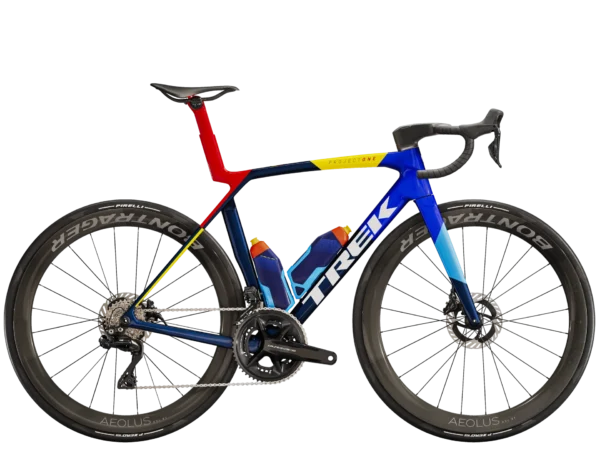

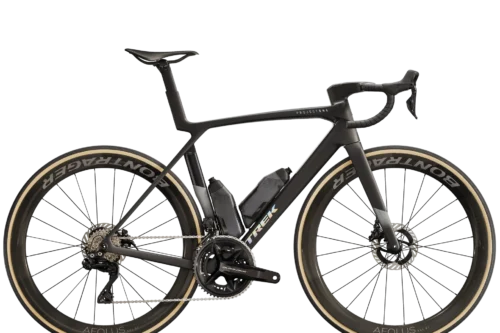

Trek Madone SLR 9 Gen 8

Name: Trek Madone SLR 9 Gen 8
SKU: 31988
Price: 12000.00 GBP
Availability: InStock

£12,000.00

Size

Groupset

Colour

Clear

Think Madone meets Emonda

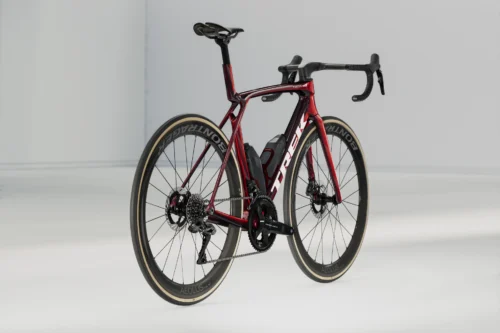

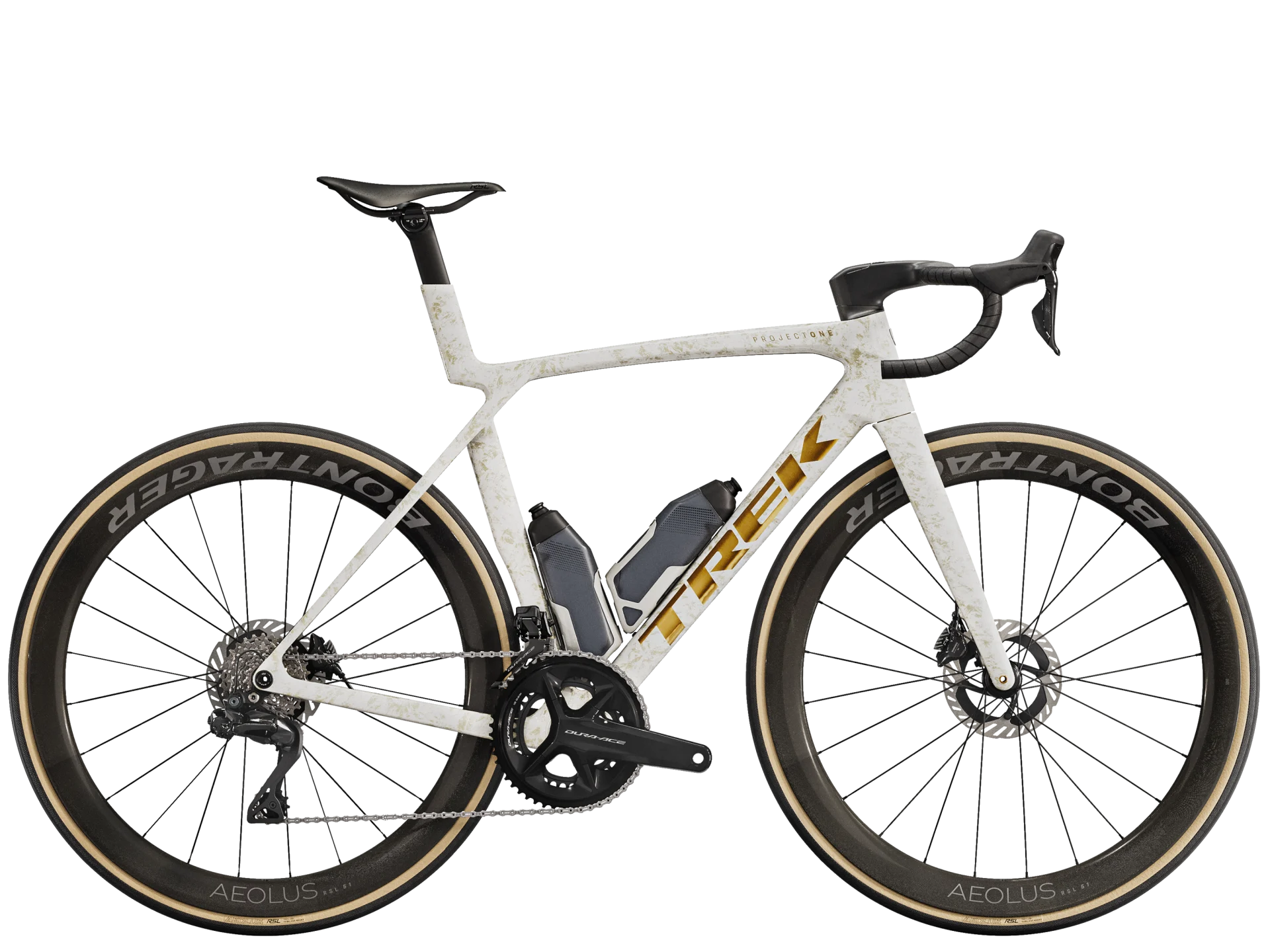

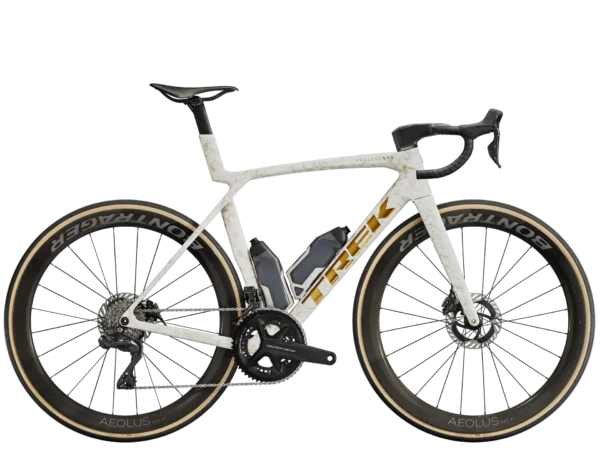

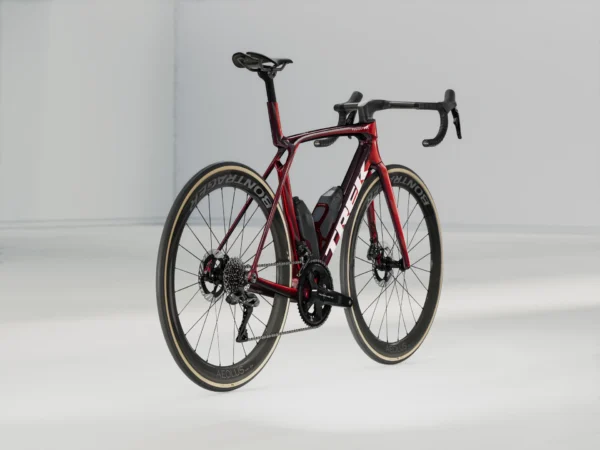

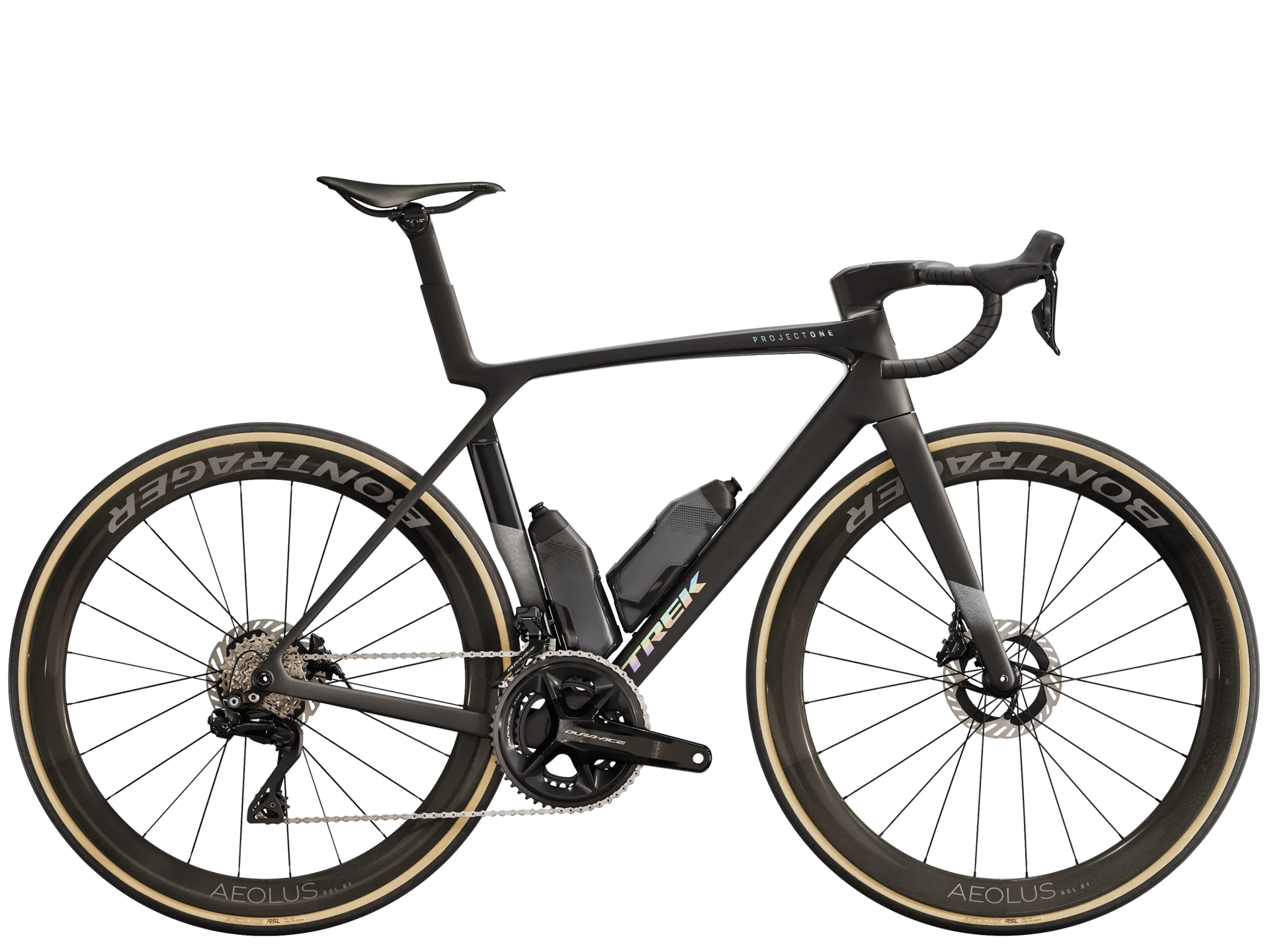

The Madone SLR 9 Gen 8 is built for dominating the roads with equal parts light weight and aerodynamic speed. It’s crafted from our highest-level 900 Series OCLV Carbon that’s not only insanely light, but delivers aerodynamic shapes for crushing descents and straightaways. Lightweight IsoFlow frame technology means that Madone doesn’t sacrifice comfort for speed. This build comes ready to win with Shimano’s top-of-the-line Dura-Ace Di2 drivetrain, carbon wheels, a Trek Aero RSL one-piece carbon bar/stem and RSL Aero Bottles and Cages for more drag reduction.

We can deliver for £95 (E&W) £125 Scotland

SKU: N/A Categories: In Stock, Road, Trek Tags: 2025, Madone, Trek

Think Madone meets Emonda

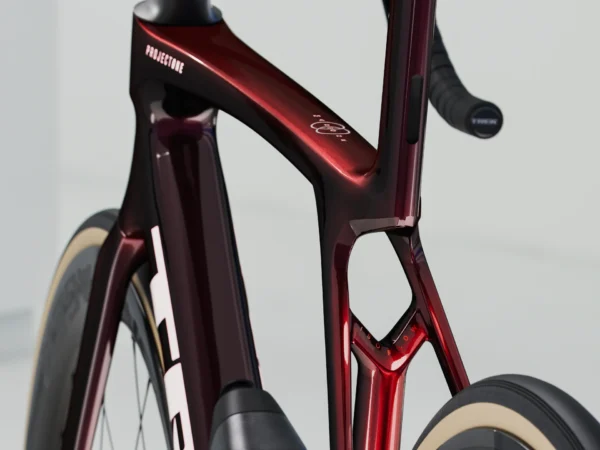

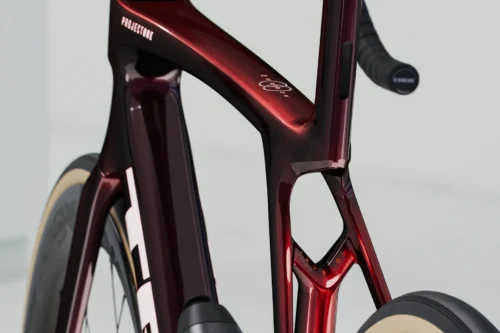

Frame	900 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic-only routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142×12 mm thru axle
Fork	Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle

Weight	ML – 7.08 kg/15.61 lb (with TLR sealant, no tubes)
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).

Battery	Shimano BT-DN300
Charger	Charging cable included

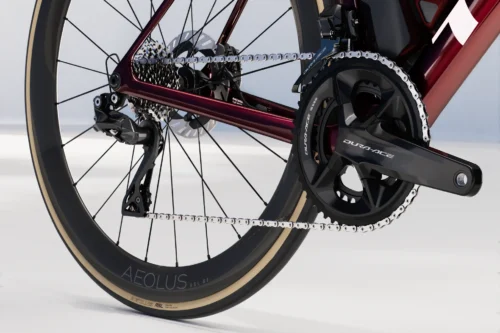

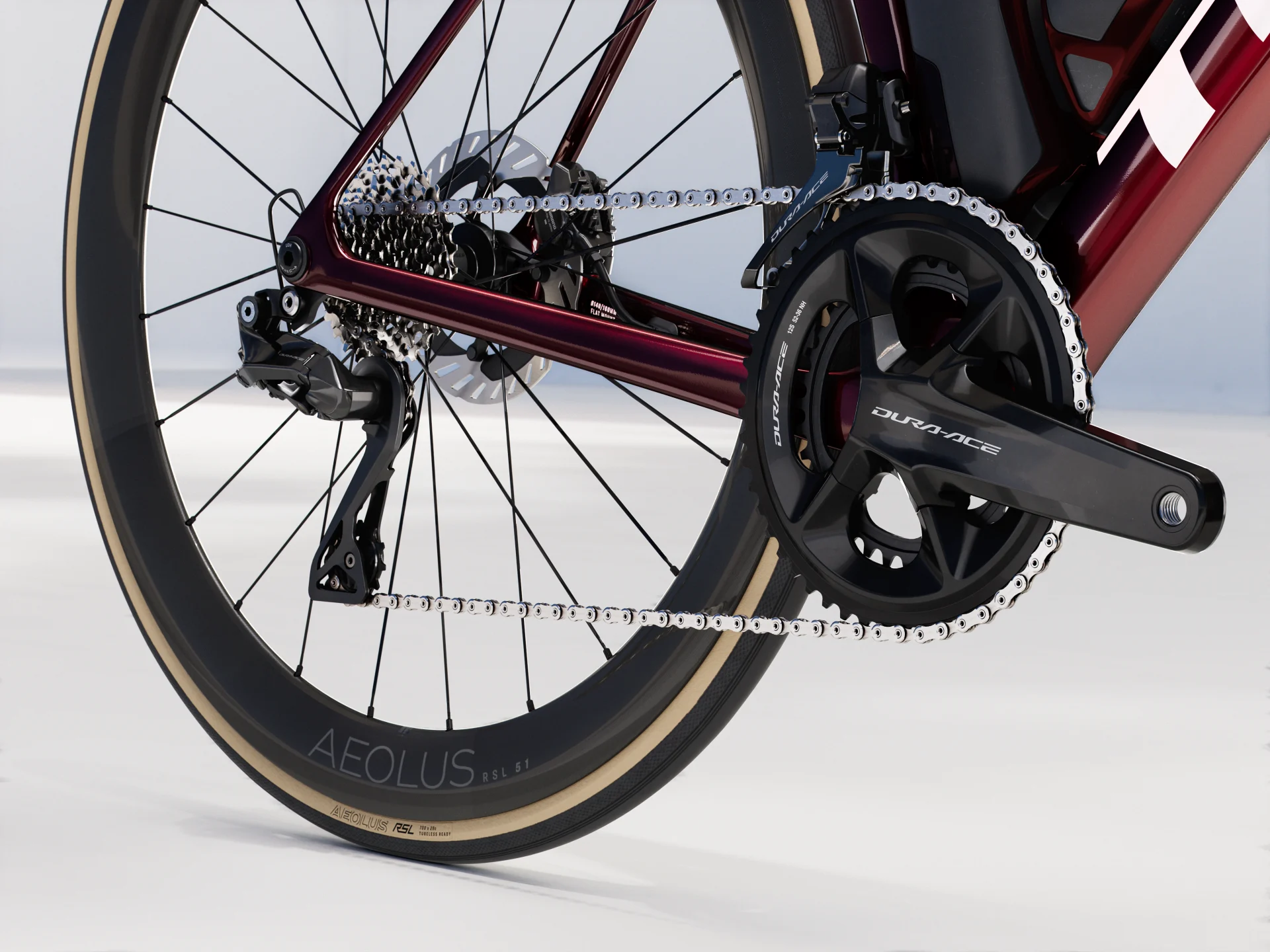

Shifter	Shimano Dura-Ace R9270 Di2, 12 speed
Front derailleur	Shimano Dura-Ace R9250 Di2, braze-on, down swing
Rear derailleur	Shimano Dura-Ace R9250 Di2, 34T max cog
*Crank	Size: XS, S Shimano Dura-Ace R9200, 52/36, 165 mm length
	Size: M Shimano Dura-Ace R9200, 52/36, 170 mm length
	Size: ML, L Shimano Dura-Ace R9200, 52/36, 172.5 mm length
	Size: XL Shimano Dura-Ace R9200, 52/36, 175 mm length
Bottom bracket	Praxis, T47 threaded, internal bearing
Cassette	Shimano Dura-Ace R9200, 11-30, 12-speed
Chain	Shimano Dura-Ace/XTR M9100, 12-speed
Max. chainring size	1x: 54T, 2x: 56/43

Wheel front	Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51 mm rim depth, 100×12 mm thru axle
Wheel rear	Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51 mm rim depth, Shimano 11/12 freehub, 142×12 mm thru axle
Skewer front	Bontrager Switch chamfered thru axle, removable lever
Skewer rear	Bontrager Switch chamfered thru axle, removable lever
*Tyre	Size: XS, S, M, ML, L, XL Bontrager Aeolus RSL RD, Tubeless-Ready, cotton construction, aramid bead, 170 tpi, 700×28 mm
*Tyre	Size: XS, S, M, ML, L, XL Pirelli P Zero Race, 120 tpi, tubeless-compatible, 700×28 mm
Tyre part	Bontrager TLR sealant, 180 ml/6 oz
Max tyre size	32 mm (as measured, see manual for details)

*Saddle	Size: XS, S Aeolus RSL, carbon rails, 155 mm width
*Saddle	Size: M, ML, L, XL Aeolus RSL, carbon rails, 145 mm width
*Seatpost	Size: XS, S, M Madone aero carbon seat post, 0 mm offset, short length
*Seatpost	Size: ML, L, XL Madone aero carbon seat post, 0 mm offset, long length

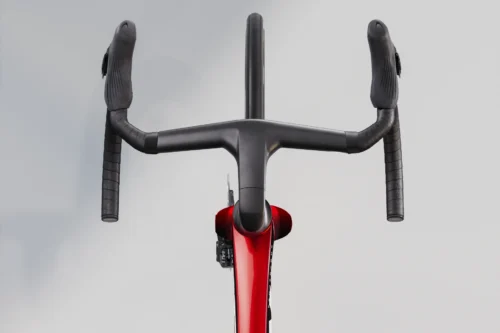

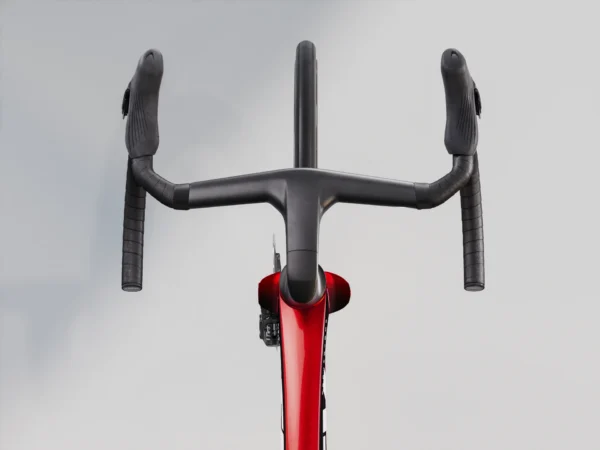

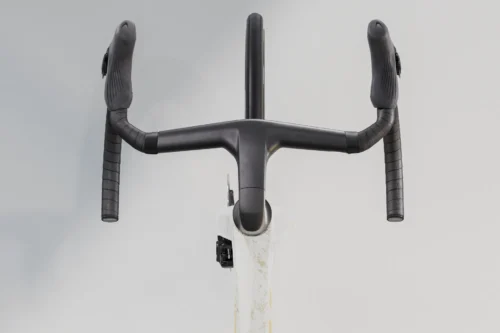

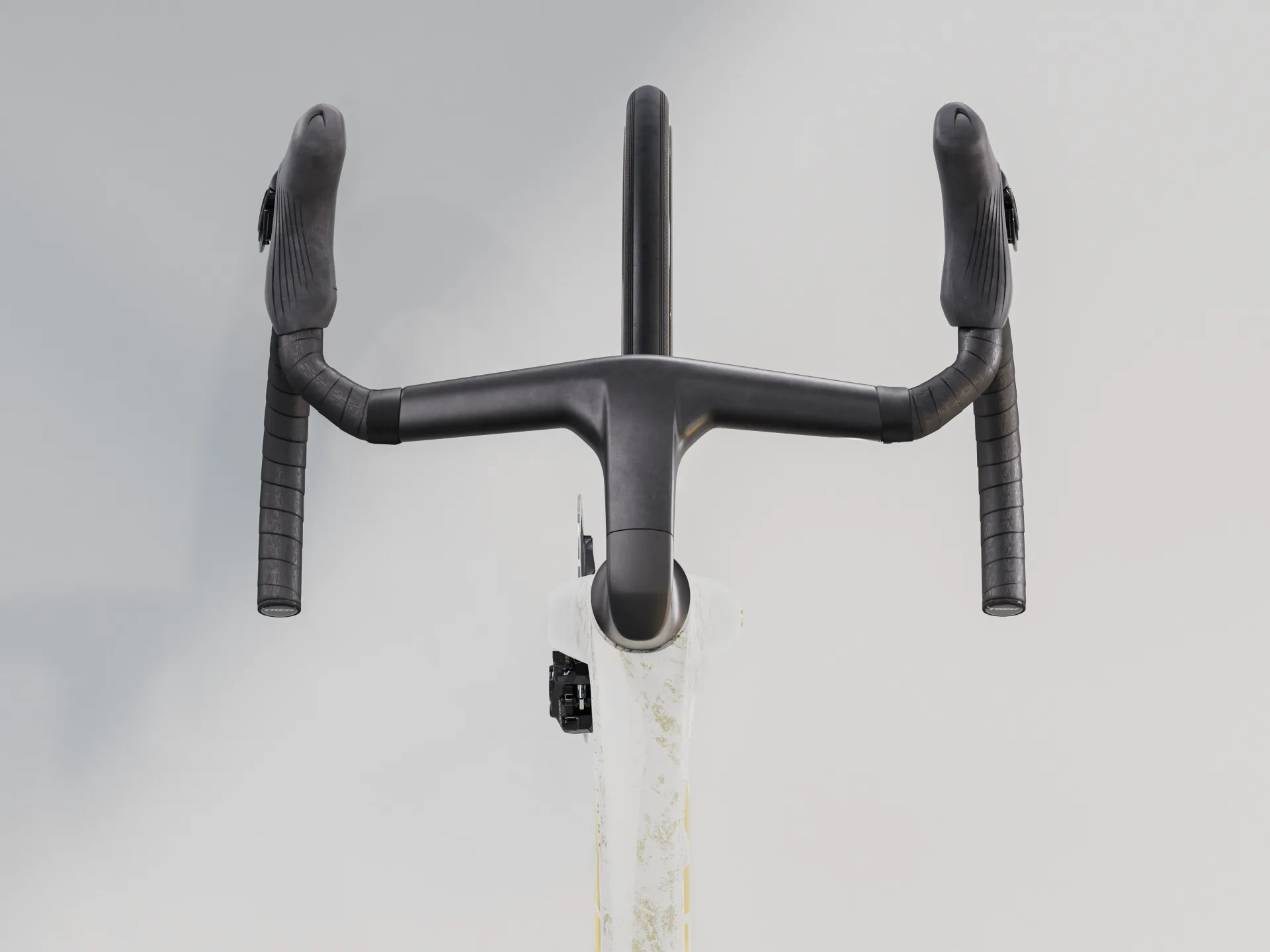

*Handlebar/stem (integrated)	Size: XS Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 35 cm control width, 38 cm drop width, 80 mm stem length
	Size: S Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 37 cm control width, 40 cm drop width, 90 mm stem length
	Size: M Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 90 mm stem length
	Size: ML, L Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 100 mm stem length
	Size: XL Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 41 cm control width, 44 cm drop width, 110 mm stem length
Rotor size	Max brake rotor sizes: 180 mm front, 160 mm rear

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.

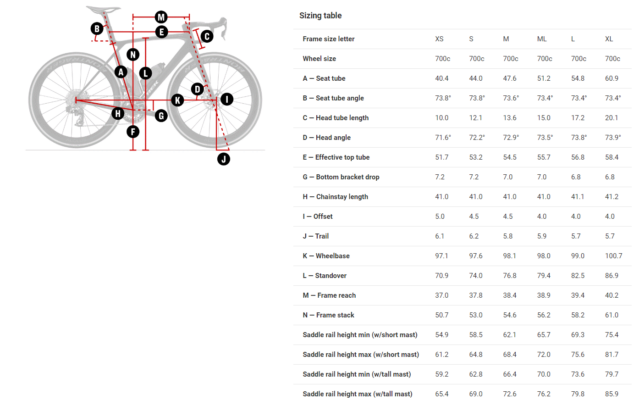

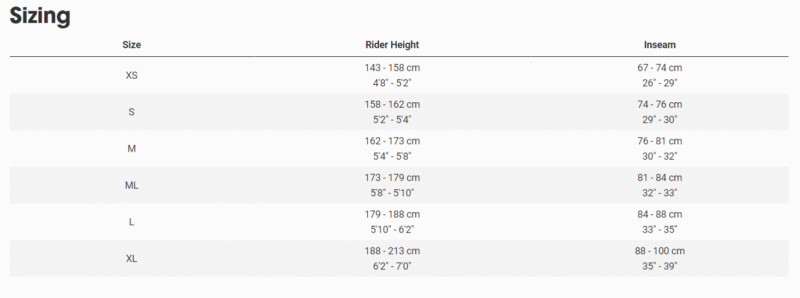

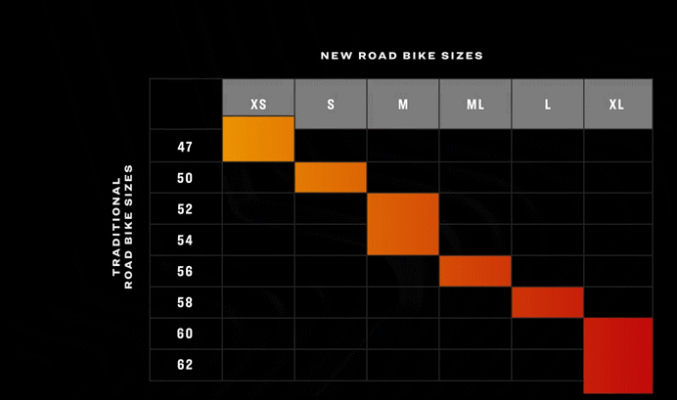

Sizing

Size	L, M, S, XL, XS, M/L
Category	Road
Brand	Trek
Groupset	Dura Ace Disc Di2 (2 x 12)
Colour	Carbon Red Smoke, Era White, Matte/Gloss Carbon Smoke, Navy Smoke
