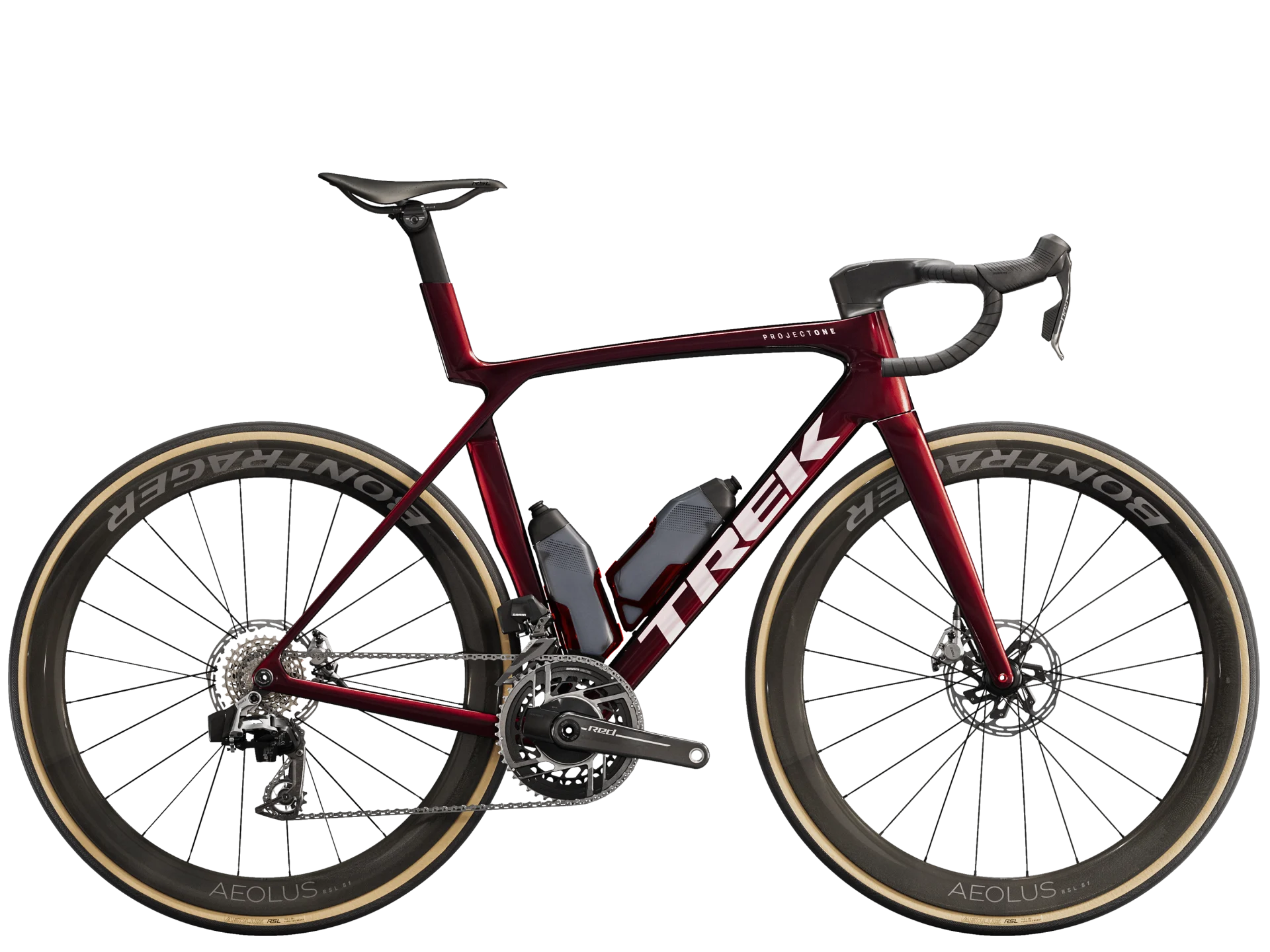

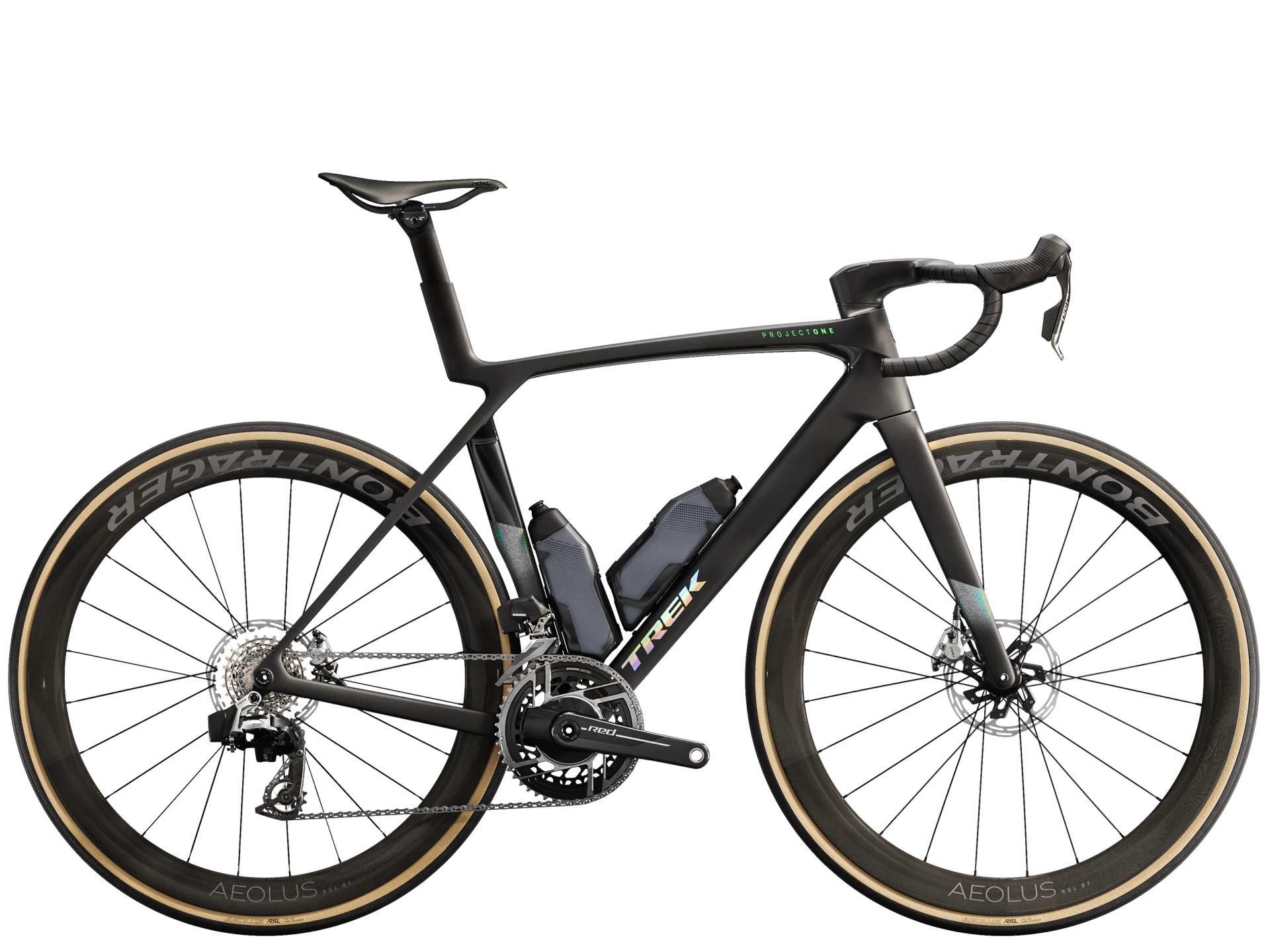

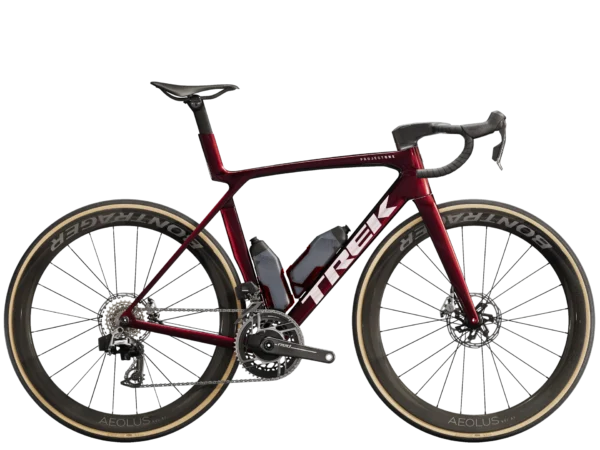

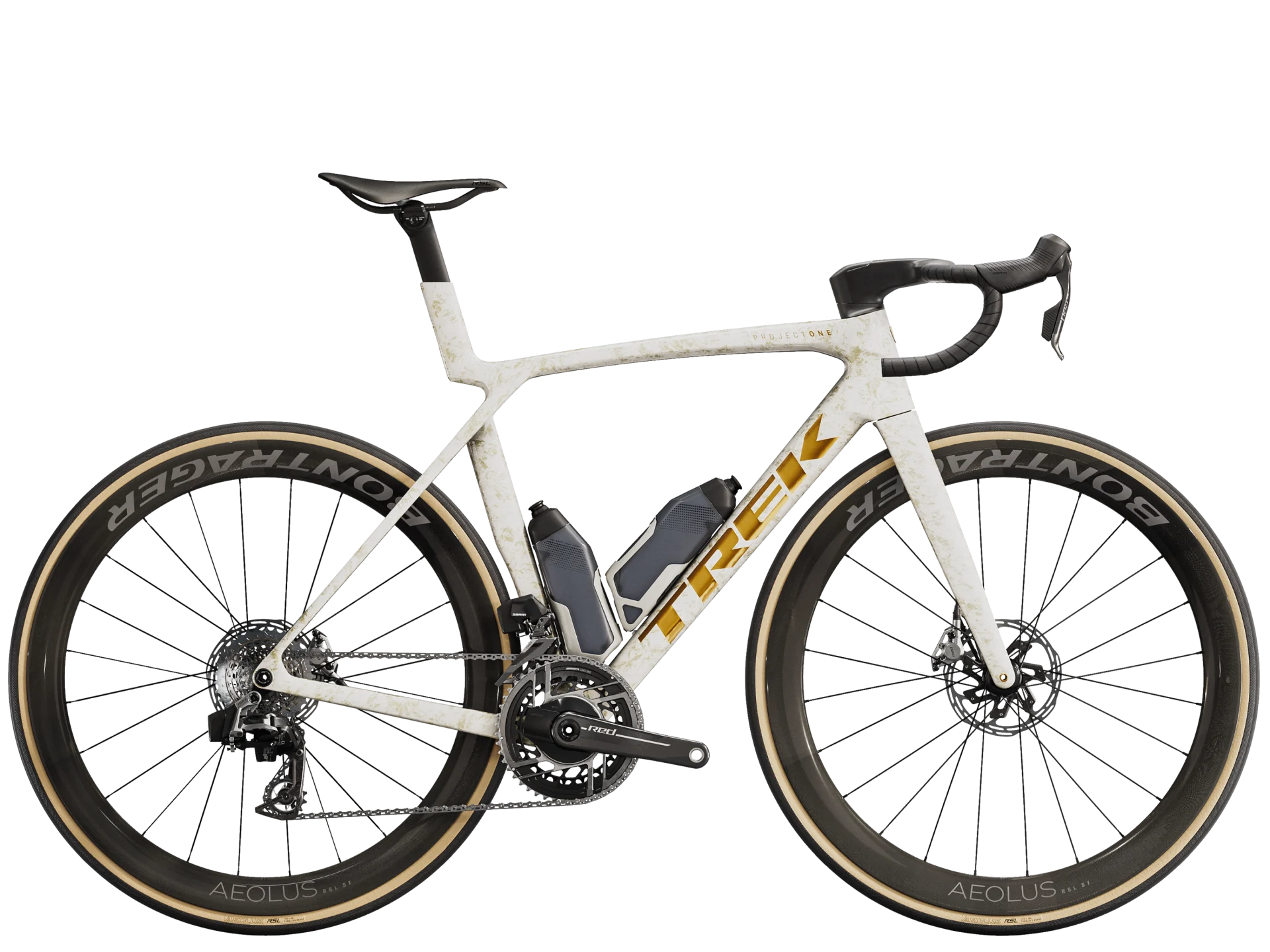

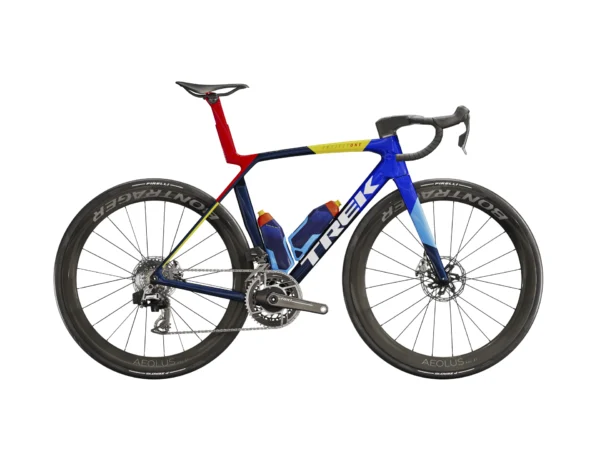

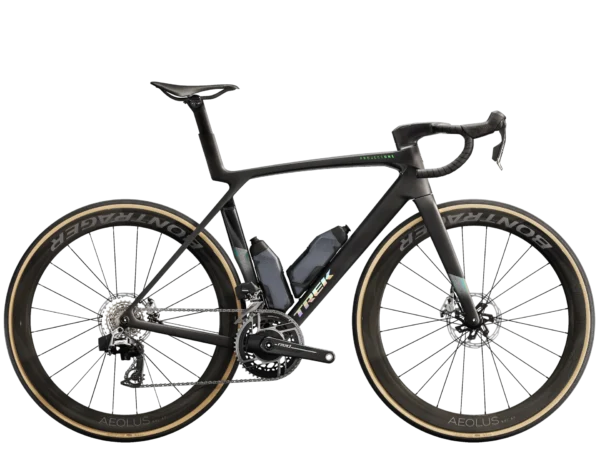

Trek Madone SLR 9 AXS Gen 8

Name: Trek Madone SLR 9 AXS Gen 8
SKU: 31963
Price: 12500.00 GBP
Availability: InStock

£12,500.00

Size

Groupset

Colour

Clear

Think Modone meets Emonda …

The Madone SLR 9 AXS Gen 8 is built for dominating the roads with equal parts light weight and aerodynamic speed. It’s crafted from our highest-level 900 Series OCLV Carbon that’s not only insanely light, but delivers aerodynamic shapes for crushing descents and straightaways. Lightweight IsoFlow frame technology means that Madone doesn’t sacrifice comfort for speed. This build comes ready to win with a top-level SRAM RED AXS drivetrain with a power meter, carbon wheels, a Trek Aero RSL one-piece carbon bar/stem and RSL Aero Bottles and Cages for more drag reduction.

We can deliver for £95 (E&W) £125 Scotland

SKU: N/A Categories: In Stock, Road, Trek Tags: 2025, Madone, Trek

Think Madone meets Emonda

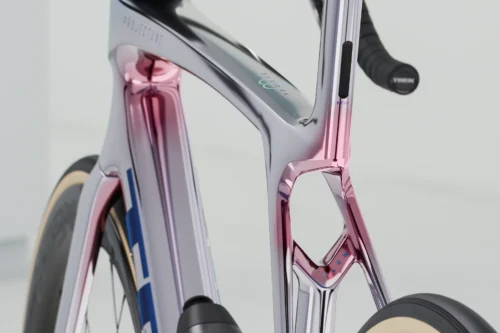

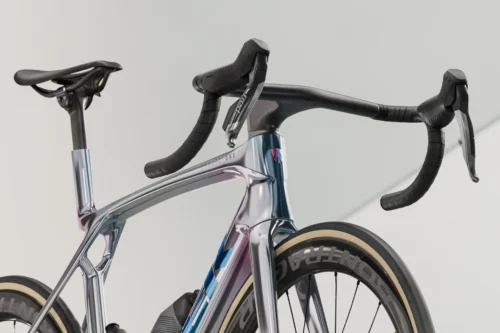

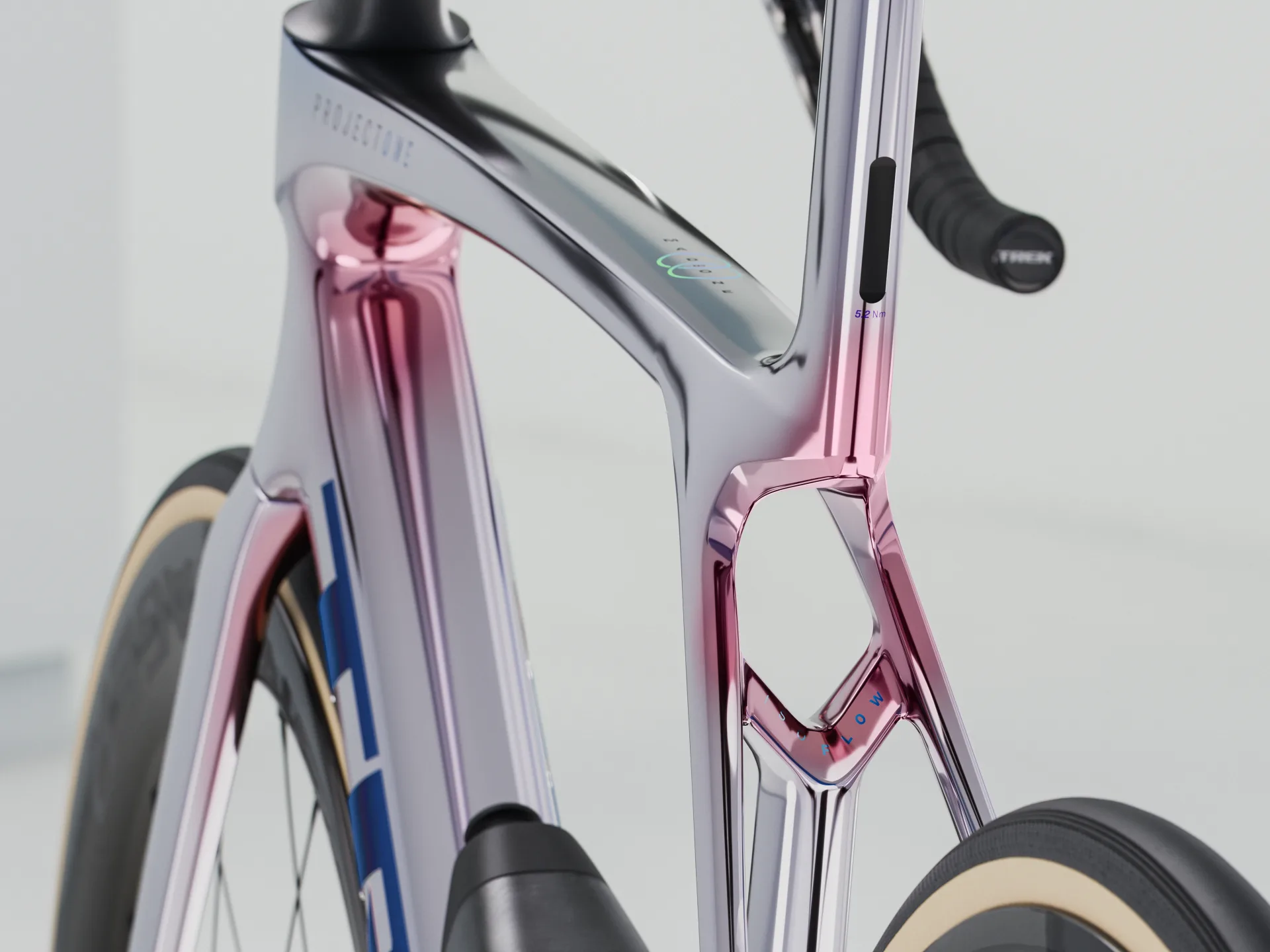

Frame	900 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic-only routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142×12 mm thru axle
Fork	Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle

Weight	ML – 7.00 kg/15.44 lb (with TLR sealant, no tubes)
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).

Battery	SRAM eTap battery pack (with charger)

Shifter	SRAM RED AXS E1
Front derailleur	SRAM RED AXS E1, braze-on
Rear derailleur	SRAM RED AXS E1, 36T max cog

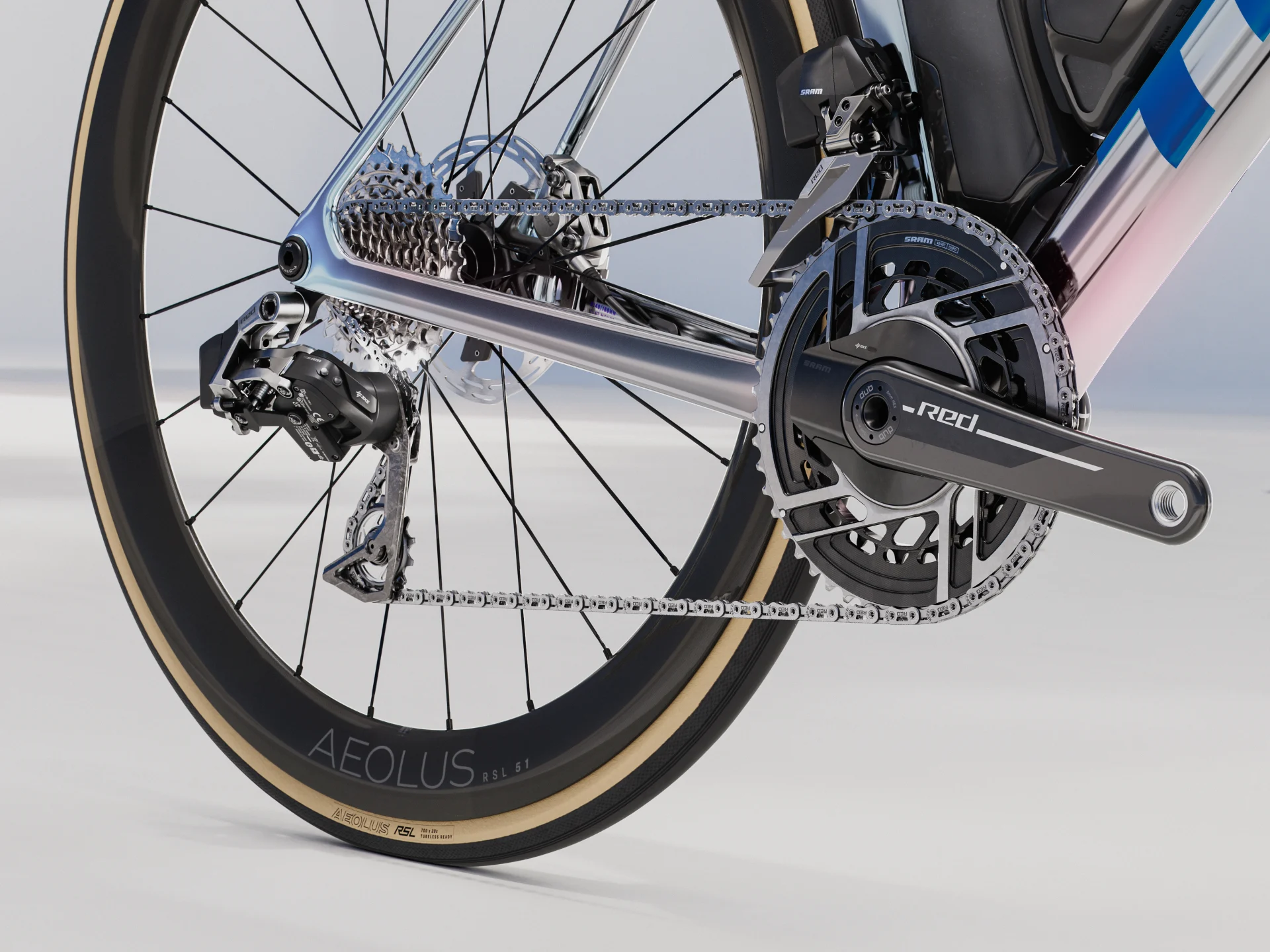

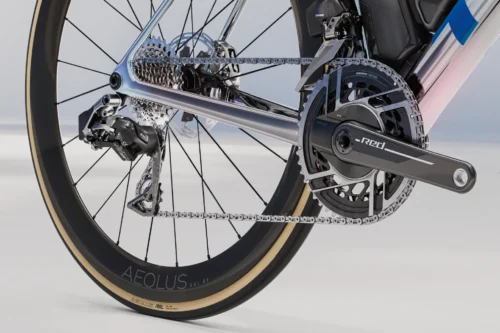

*Crank	Size: XS, S SRAM RED AXS E1, power meter, 48/35, DUB, 165 mm length
	Size: M SRAM RED AXS E1, power meter, 48/35, DUB, 170 mm length
	Size: ML, L SRAM RED AXS E1, power meter, 48/35, DUB, 172.5 mm length
	Size: XL SRAM RED AXS E1, power meter, 48/35, DUB, 175 mm length
Bottom bracket	SRAM DUB, T47 threaded, internal bearing
Cassette	SRAM RED XG-1290 E1, 10-33, 12-speed
Chain	SRAM RED E1, 12-speed
Max. chainring size	1x: 54T, 2x: 56/43

Wheel front	Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51 mm rim depth, 100×12 mm thru axle
*Wheel rear	Size: XS, S, M, ML, L, XL Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51 mm rim depth, Shimano 11/12 freehub, 142×12 mm thru axle
*Wheel rear	Size: XS, S, M, ML, L, XL Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51 mm rim depth, SRAM XD-R driver, 142×12 mm thru axle
Skewer front	Bontrager Switch chamfered thru axle, removable lever
Skewer rear	Bontrager Switch chamfered thru axle, removable lever
Rim	Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless-Ready
*Tyre	Size: XS, S, M, ML, L, XL Bontrager Aeolus RSL RD, Tubeless-Ready, cotton construction, aramid bead, 170 tpi, 700×28 mm
*Tyre	Size: XS, S, M, ML, L, XL Pirelli P Zero Race, 120 tpi, tubeless-compatible, 700×28 mm
Tyre part	Bontrager TLR sealant, 180 ml/6 oz
Max tyre size	32 mm (as measured, see manual for details)

*Saddle	Size: XS, S Aeolus RSL, carbon rails, 155 mm width
*Saddle	Size: M, ML, L, XL Aeolus RSL, carbon rails, 145 mm width
*Seatpost	Size: XS, S, M Madone aero carbon seat post, 0 mm offset, short length
*Seatpost	Size: ML, L, XL Madone aero carbon seat post, 0 mm offset, long length

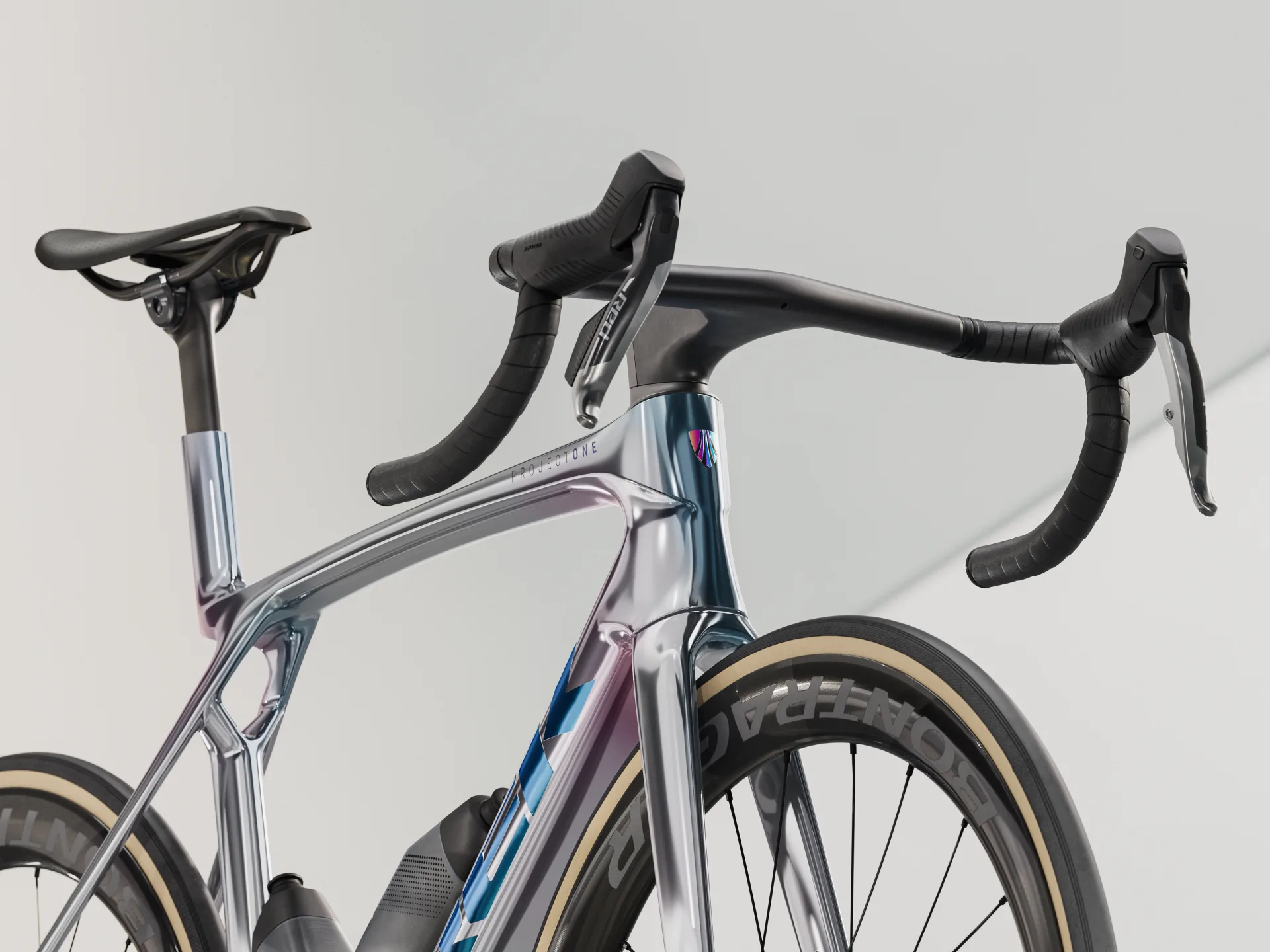

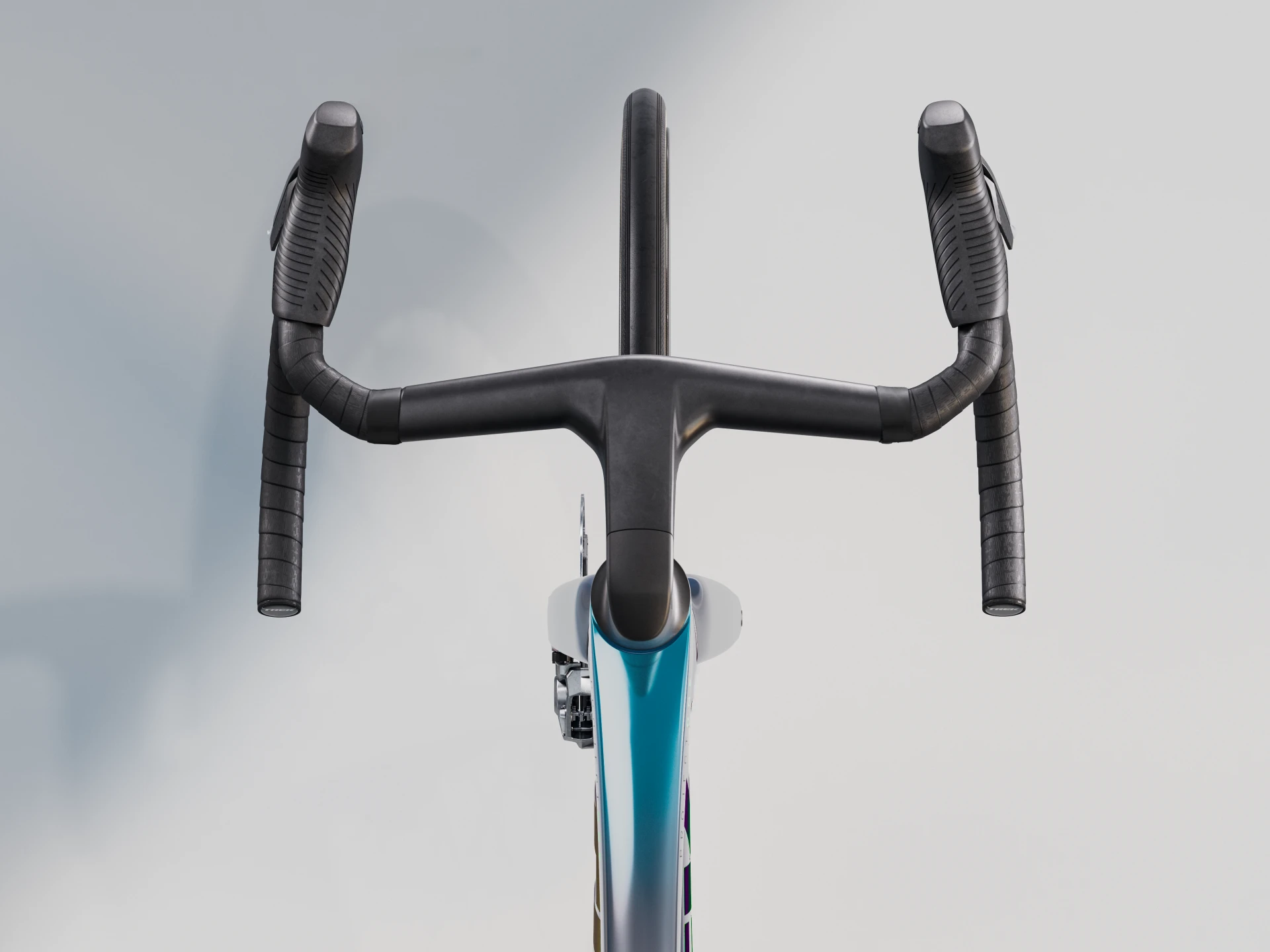

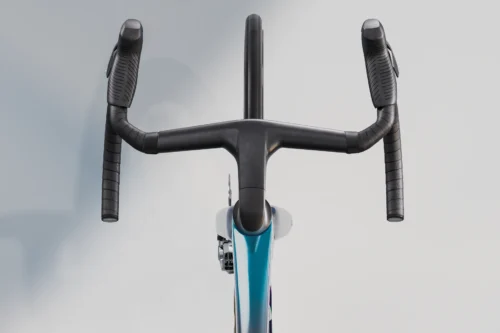

*Handlebar/stem (integrated)	Size: XS Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 35 cm control width, 38 cm drop width, 80 mm stem length
	Size: S Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 37 cm control width, 40 cm drop width, 90 mm stem length
	Size: M Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 90 mm stem length
	Size: ML, L Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 100 mm stem length
	Size: XL Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 41 cm control width, 44 cm drop width, 110 mm stem length
Rotor size	Max brake rotor sizes: 180 mm front, 160 mm rear
