Trek Madone SL 5 Gen 8

Name: Trek Madone SL 5 Gen 8
SKU: 32087
Price: 3250.00 GBP
Availability: InStock

£3,250.00

Size

Groupset

Colour

Clear

Think Madone meets Emonda

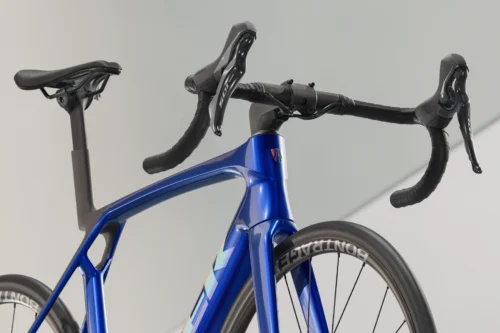

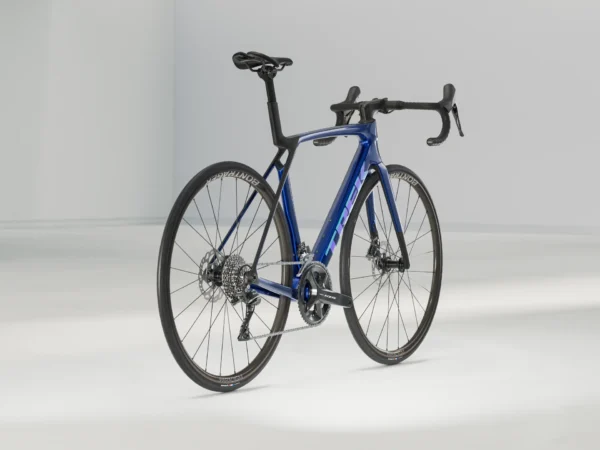

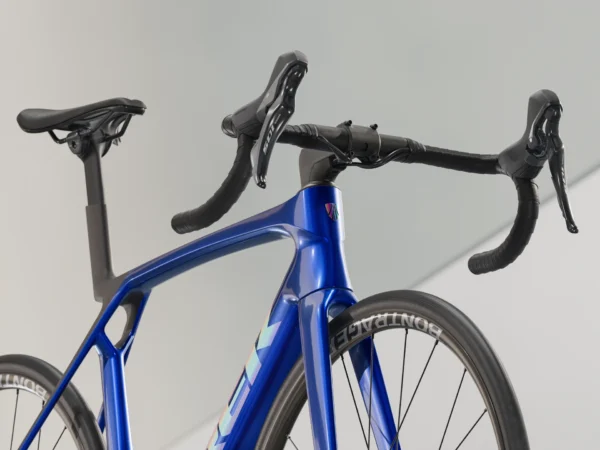

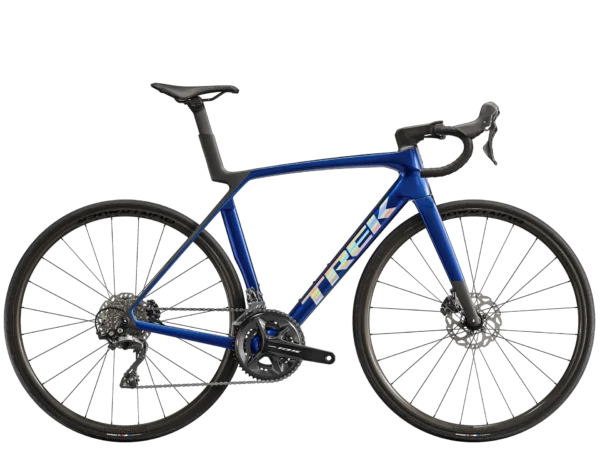

The Madone SL 5 Gen 8 is a lightweight aero road bike that brings elite racing tech to a lower price point. It offers similar aero benefits to the pricier Madone SLR Gen 8, but with a more economical OCLV 500 Carbon lay-up and two-piece cockpit with hidden cable routing. It’s built to race, with geometry that keeps you quick on the sprints yet in control on fast descents. A Shimano 105 group set keeps the price down while still delivering clean mechanical shifting you can trust.

We can deliver for £95 (E&W) £125 Scotland

SKU: N/A Categories: In Stock, Road, Trek Tags: 2025, Madone, Trek

Think Madone meets Emonda

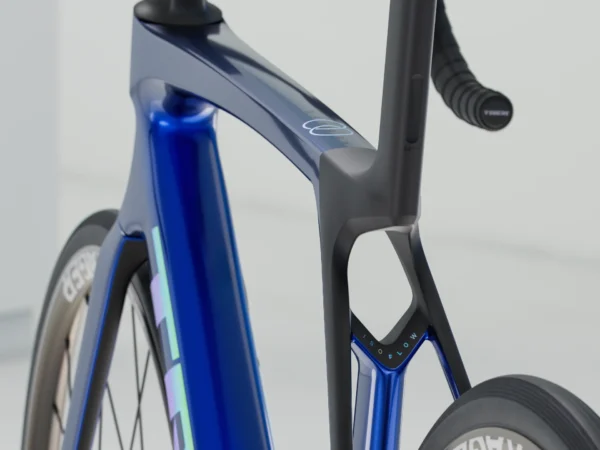

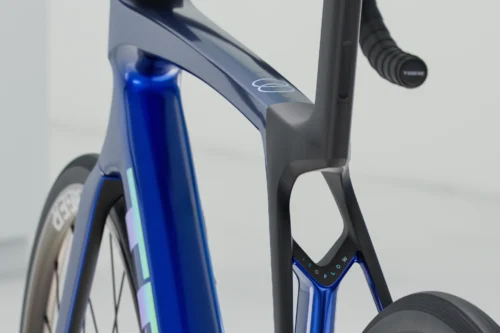

Frame	500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142×12 mm thru axle
Fork	Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle

Weight	ML – 8.70 kg / 19.19 lbs (with tubes)
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).

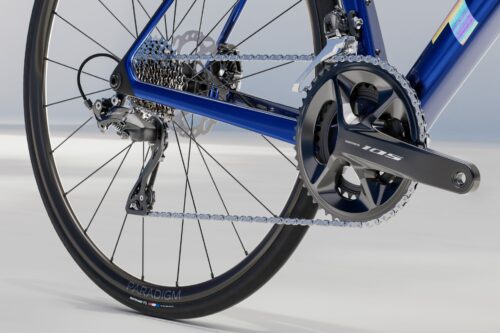

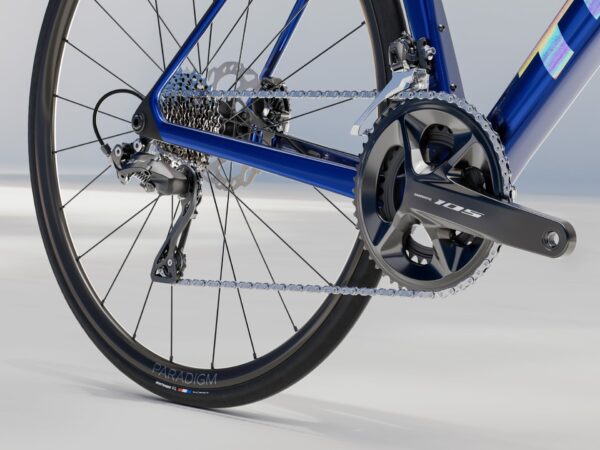

Shifter	Shimano 105 R7120, 12-speed
Front derailleur	Shimano 105 R7100, braze-on, down swing
Rear derailleur	Shimano 105 R7100, 36T max cog
*Crank	Size: XS, S Shimano 105 R7100, 50/34, 165 mm length
	Size: M Shimano 105 R7100, 50/34, 170 mm length
	Size: ML, L Shimano 105 R7100, 50/34, 172.5 mm length
	Size: XL Shimano 105 R7100, 50/34, 175 mm length
Bottom bracket	Praxis, T47 threaded, internal bearing
Cassette	Shimano 105 7101, 11-34, 12-speed
Chain	Shimano SLX M7100, 12-speed
Max. chainring size	1x: 54T, 2x: 56/43

Wheel front	Bontrager Paradigm SL, Tubeless Ready, 21 mm rim width, 100×12 mm thru axle
Wheel rear	Bontrager Paradigm SL, Tubeless Ready, 21 mm rim width, 142×12 mm thru axle
Hub front	Bontrager alloy, sealed bearing, CenterLock disc, 100×12 mm thru axle
Skewer front	Bontrager Switch chamfered thru axle, removable lever
Hub rear	Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142×12 mm thru axle
Skewer rear	Bontrager Switch chamfered thru axle, removable lever
Rim	Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
Spokes	14 g stainless steel, black
Tyre	Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700×28 mm
Max tyre size	32 mm (as measured, see manual for details)

*Saddle	Size: XS, S Bontrager Aeolus Comp, steel rails, 155 mm width
*Saddle	Size: M, ML, L, XL Bontrager Aeolus Comp, steel rails, 145 mm width
*Seatpost	Size: XS, S, M Madone aero carbon seat post, 0 mm offset, short length
*Seatpost	Size: ML, L, XL Madone aero carbon seat post, 0 mm offset, long length

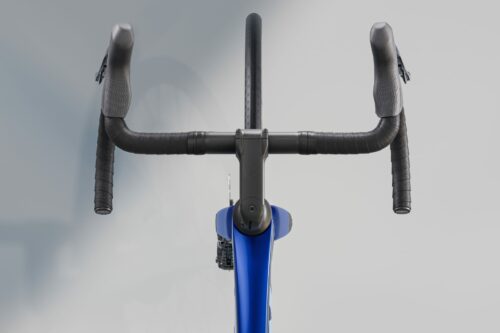

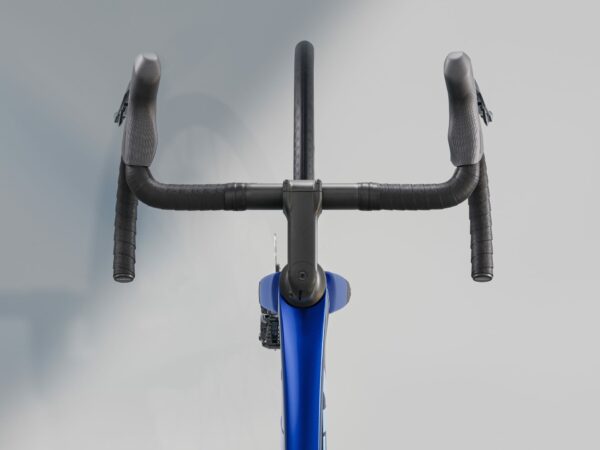

*Handlebar	Size: XS Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 36 cm control width, 40 cm drop width
	Size: S, M Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width
	Size: ML, L Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width
	Size: XL Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drop width
*Stem	Size: XS Trek RCS Pro, -7-degree, 80 mm length
	Size: S, M Trek RCS Pro, -7-degree, 90 mm length
	Size: ML, L Trek RCS Pro, -7-degree, 100 mm length
	Size: XL Trek RCS Pro, -7-degree, 110 mm length
Brake rotor	Shimano RT70, CentreLock, 160 mm
Rotor size	Max brake rotor sizes: 180 mm front, 160 mm rear

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
